Dependable energy across industries.
PCM-CAGE puts phase change material inside every battery module, so peak heat is absorbed passively, with no fans or pumps.
16.4°C

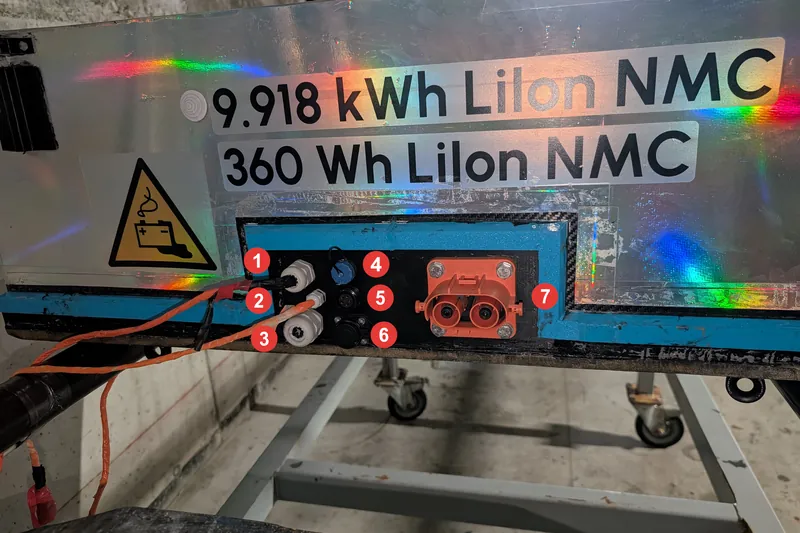

lower peak cell temperature, 240 A test9.918kWh
nominal pack energy190Wh/kg
specific energy385Wh/L
volumetric densityThermal control,
built into every module.

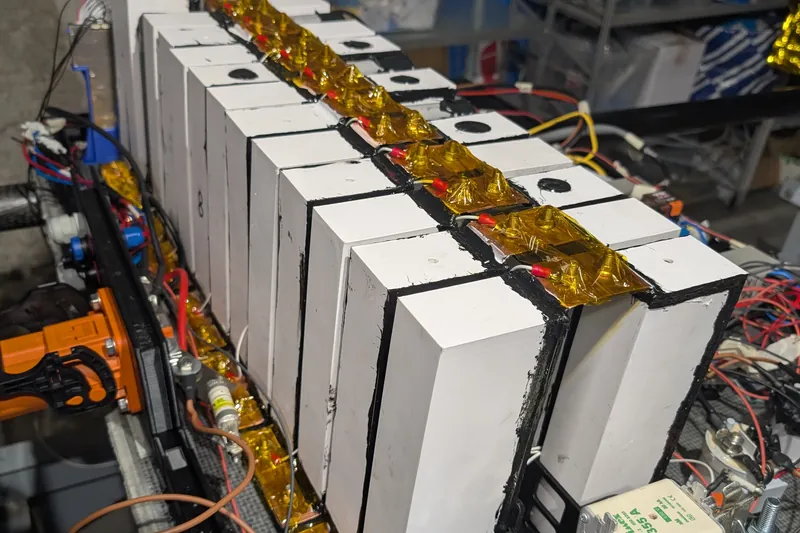

Twenty-nine modules in series, each holding 19 cells surrounded by PCM48. Click a module to look inside.
- 129 PCM-CAGE modulesIn series, 104.4 V nominal.
- 2Copper busbarsLink one stage to the next.
- 3Smart BMSBalancing, protection, sensing.
Absorb
The PCM melts and takes up peak heat right next to the cells.
Transfer
Collectors and the cage carry stored heat towards the enclosure.
Recover
At rest the material solidifies, ready for the next mission.
One architecture.
Many duty cycles.
Each application is qualified on its own load, ambient and recovery window.
Mobility
Compact vehicles and auxiliary systems: high power peaks in limited space.
Robotics
Mobile robots and autonomous equipment: predictable power, mission after mission.
Industrial equipment
Battery machinery with intense bursts of load and time to recover between them.
Energy storage
Backup and intermittent storage, where the duty cycle sets the architecture.

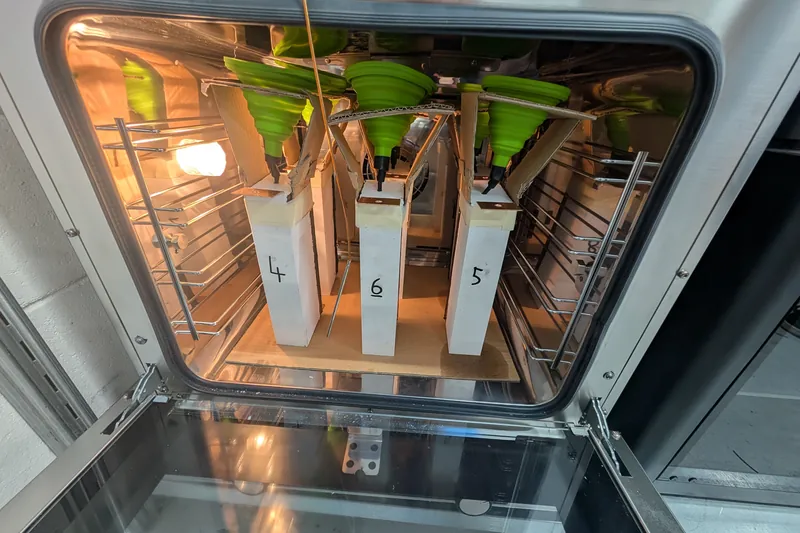

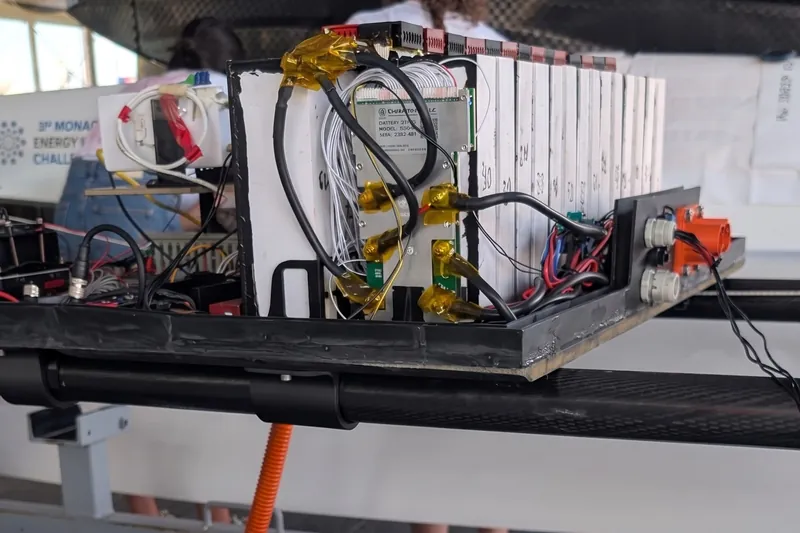

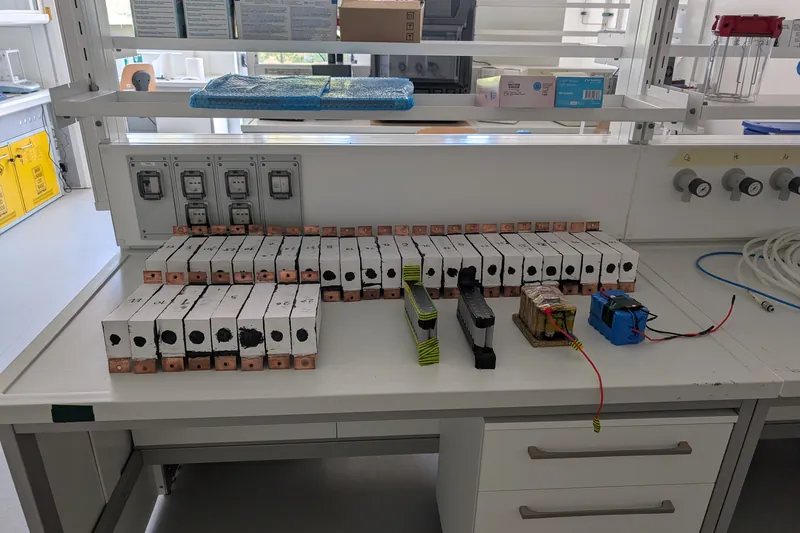

From the lab
to the water.

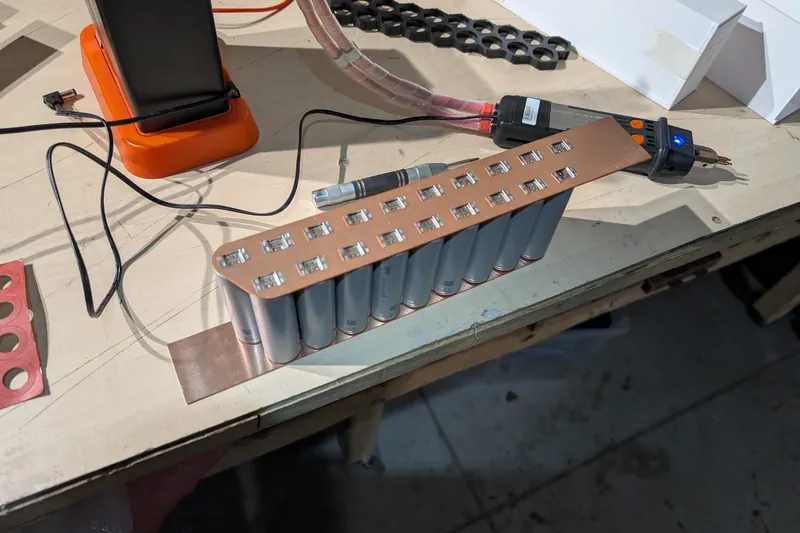

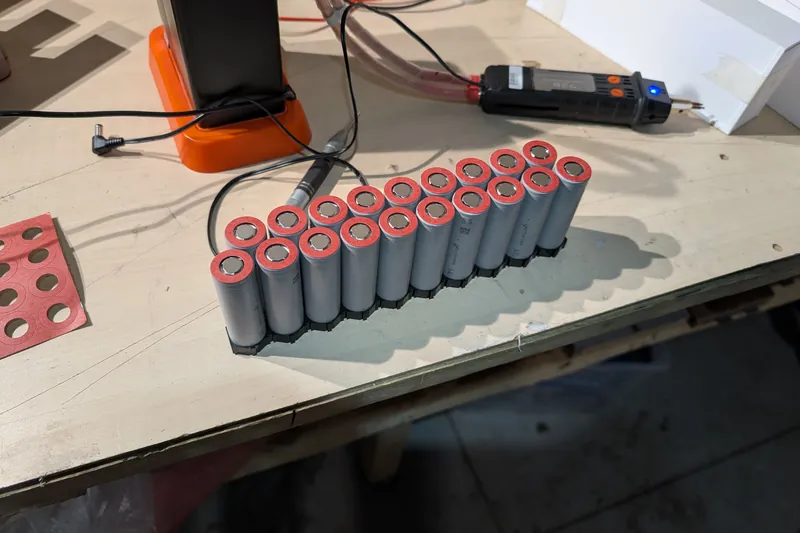

Nineteen cells, one stage.
Tenpower 21700 cells, set in two staggered rows. Photograph 1 of 9.
The evidence.
Test data, specifications and the research behind the design.
Talk to
our sales team.
Tell us about your application. We reply with a first technical view of fit.
